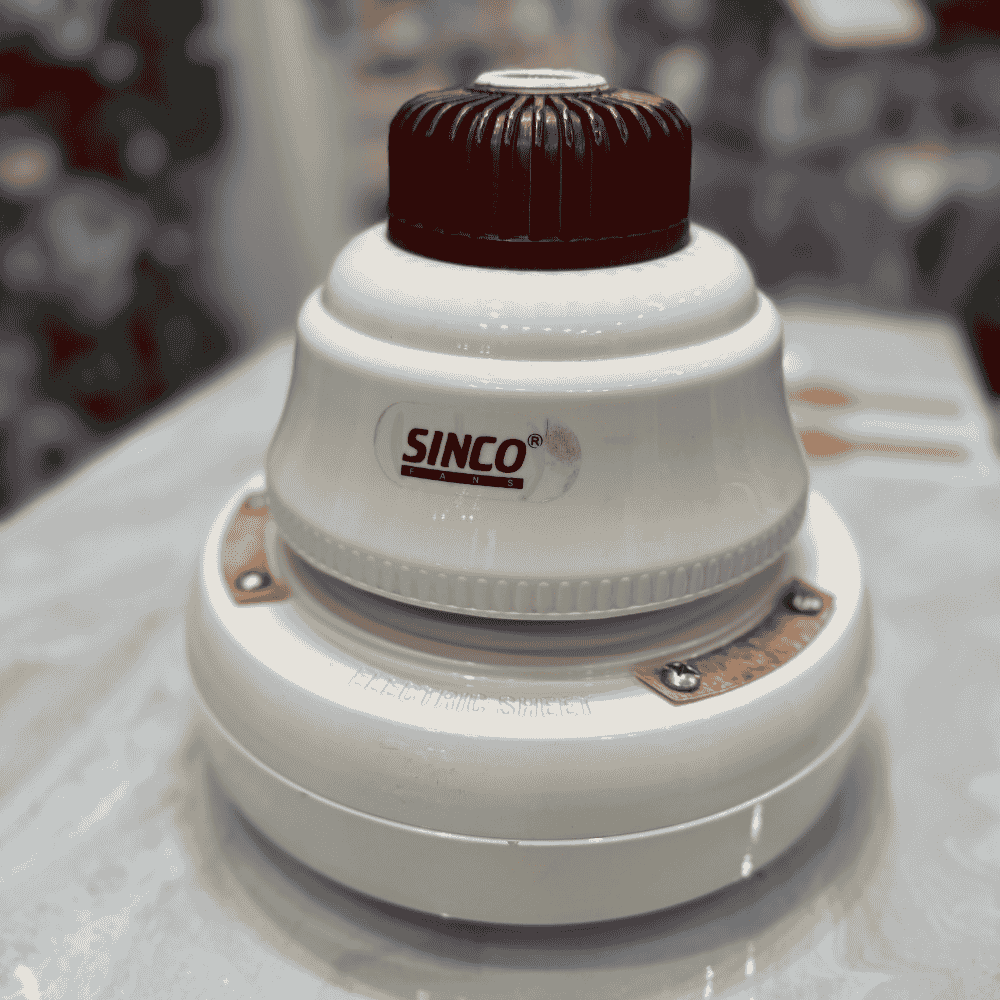

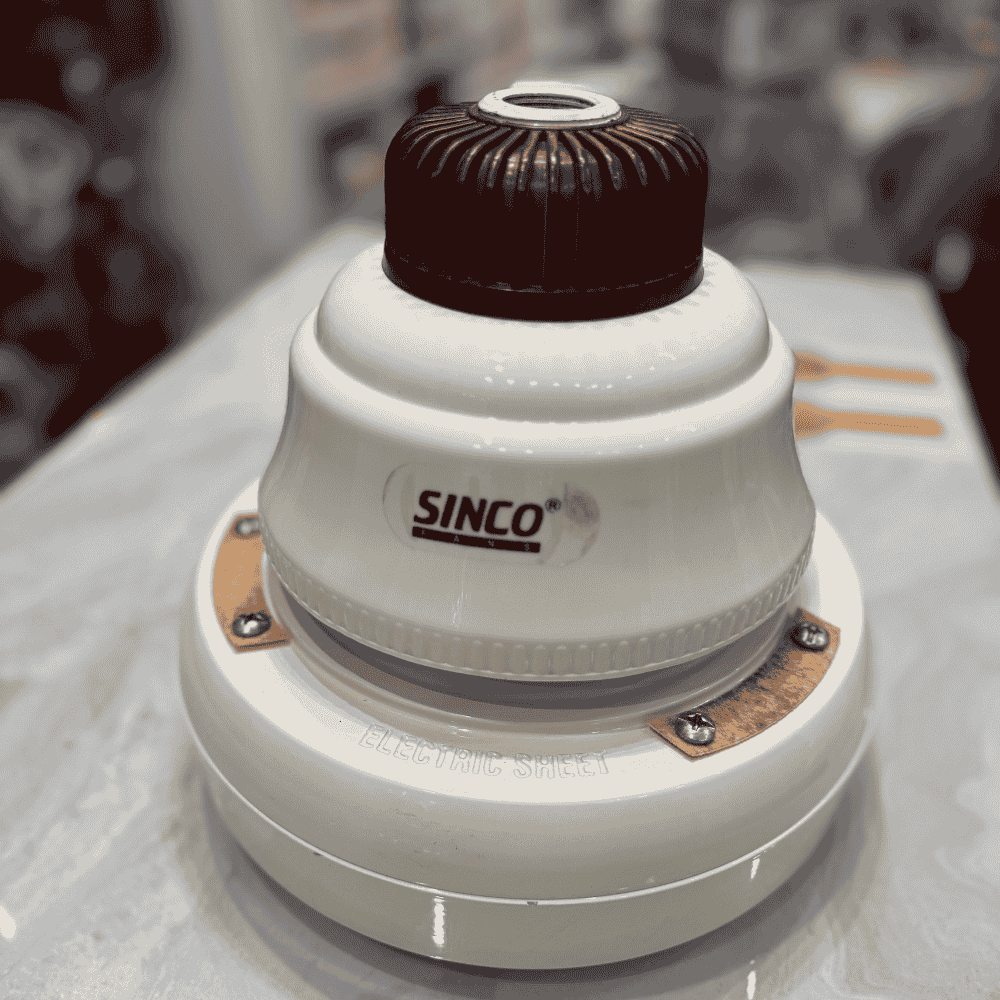

Sinco King Model – AC/DC Inverter Ceiling Fan
Overview
The Sinco King Model is a high-efficiency AC/DC inverter fan designed to deliver powerful airflow while conserving energy. Powered by a Permanent Magnet BLDC Motor, this fan operates silently and comes with a 6-speed remote control, making it perfect for modern homes and offices. Its energy-saving performance makes it ideal for use with UPS and solar systems.
Color
- Cream Dark Wood
Key Features
- Permanent Magnet 18-Pole BLDC Motor
- 6-Speed Remote Control Operation
- Operates on AC 170–240V and DC 6–24V
- 100% Copper Wire with Japanese Electrical Steel
- Silent Operation with Strong Airflow
- Double Ball Bearings for Durability
- Low Power Consumption – Only 4W at Low Speed
- Ideal for Inverter and Solar Systems
- Stylish Design with High Performance
Specifications
| Speed | RPM | Power (Watts) |
|---|---|---|
| Speed 1 | 150 | 4W |
| Speed 2 | 200 | 8W |
| Speed 3 | 250 | 14W |
| Speed 4 | 300 | 22W |
| Speed 5 | 350 | 30W |
Method of Installation
- Remove the motor and thermopore from the box. Place the motor on the thermopore with the connection box facing upward.
- Loosen grub screws from the top cover, then remove the top cover and split pin.
- Unscrew the brass check nut, slide the shackle cover and top cover onto the down rod.
- Insert the supply wire through the down rod and connect to the connector.
- Install the PCB kit on the socket and fix the spring washers with the top cover.
- Align and fix the blades onto the motor using the provided screws.
- Detach the bobbin from the down rod and insert it into the ceiling hook. Align the fan and insert the bolt and nut.
- Connect the fan’s wiring to the ceiling wiring and the regulator. Tighten the shackle cover and grub screw.
Note: Professional installation is recommended. Ensure correct voltage supply (AC/DC).
Manufacturer Details
Qintar Electric Company
Liaquat Market Road, Sargodha, Pakistan
Phone: +92-305-860-6169
Established: Since 2015
